Opus #4 St. Philomena Catholic Church Labadieville, Louisiana USA
|
This 10-rank, 13-stop, 2-manual instrument has suspended tracker
action throughout, electro-mechanical stop action, and is also equipped with a 32-stage memory combination action and a mechanically
balanced Swell pedal. There are 5 general pistons and each manual has 5 divisional pistons. Mechanical couplers include Sw./Pedal,
Gt./Pedal, and Sw./Gt. Opus #4 was designed completely by Mr. Cook, and constructed in his workshop located in Thibodaux,
Louisiana.
|
A Work in Progress The membership and church
authorities of the historic St. Philomena Catholic Church in Labadieville, Louisiana saw the need for a new pipe organ for
the church's rear gallery/choir loft. With concerns for both aesthetics and longevity, the organ committee contacted and ulitmately
commissioned Cook Church Organs. Inc., for the building of a new tracker-action instrument. Across the page, one can see the
work beginning to take shape.
|
Low-pressure
winding system, includes solid wood trunking
|
Installation
of hornbeam wood trackers.
|
In the Thick of Things Across, Adrian Cook
is situated between the Great and Swell rollerboards connecting the trackers to enable the function of the keys of the two
manuals. This new suspended mechanical action offers especially sensitive control over the way in which the pipes speak in
response to the organist's touch; the floating action automatically compensates for seasonal changes.
|
Nearing Completion Across, with all other
components installed, the arrangement of the pipework begins. Each individual pipe has its own assigned place on top of the
slider chests, except for the working facade pipes which receive their wind from from off-note blocks which in turn receive
their wind directly from the chests. Once all of the pipework is installed, the meticulous process of regulating and voicing
begins, making the sound of the finished instrument and the sanctuary in which it is housed perfect partners for the glory
of both worship and concert experiences.
|

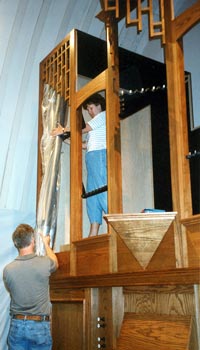

The
installation of facade pipework begins
|
